370x340x136, PC, L, preto

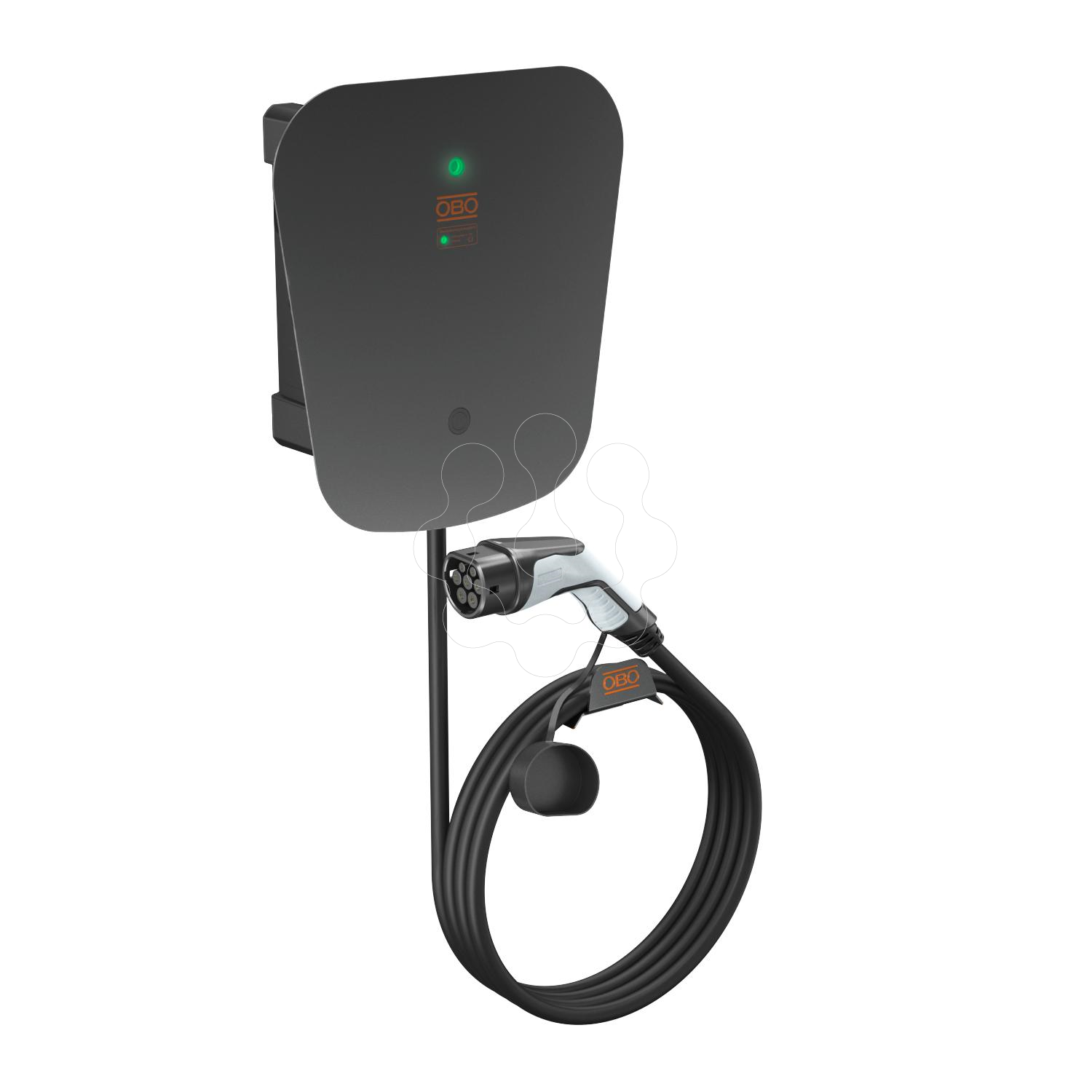

The Ion charging station for the charging of electrical vehicles in private areas as a singular charging point. Suitable for permanent mounting on the wall in interior or protected exterior areas. • Charging according to Mode 3 in accordance with IEC 61851-1 • Single, double and three-phase charging • Suitable for TN and TT networks • Integrated temperature monitoring • DC error current monitoring • Status information via LED display • Prewired, ready for connection • Including 5 m charging cable with type 2 charging connector and cable bracket • Supply from above or below • Stainless steel design elements • Charging power can be limited to a fixed value, factory-set value 11 kW • Integrated surge voltage protection for power and data cables • Modbus RTU protocol via RS-485 interface for bidirectional communication • Can be controlled via Modbus RTU for dynamic load management, dynamic PV-optimised charging and digital authentication (via web/app) with external control (ASKI, Smart1Solutions, Loxone, Comexio) • Potential-free enable contact, e.g. for PV systems, ripple control receiver
