AMAXX Combinacao de tomadas 948908 IP67

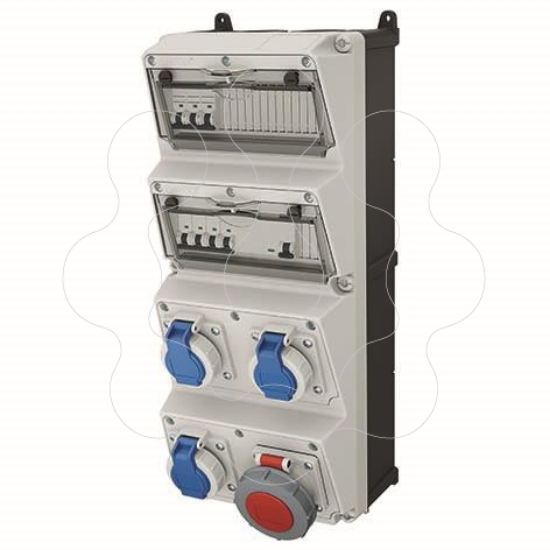

AMAXX recept. Combination, IP67. MENNEKES receptacle combination unit AMAXX ready wired for installation enclosure protection Type IP 67 enclosure: 1 AMAPLAST-enclosure 520 x 225 mm (h x w) lead-sealable, for internal or external fixing black base front cover electric grey RAL 7035 hinged cover with dual thread cover screws fusing fitted on pull out DIN rails below transparent window window open downwards and can be locked with padlock receptacles with angled plugging direction fitted with/fused with: Pos. 01 1 CEE receptacle 16A 5p 400V (IP 67) 1 MCB 16A 3p+N C 10kA (ABB) Pos. 02 3 SCHUKO receptacles 16A 2p+E 230V (IP68) 3 MCBs 16A 1p+N C 10kA (ABB) Pos. 01-02 1 RCD 40A 4p IFN= 0,03 A (ABB) cable entry/supply: 2 M 40 at the top and at the bottom (closed) 2 M 20 at the top and at the bottom (closed) terminal for 2 cables up to 5 x 25 mm² (flexible max. 16 mm²)
