AMAXX Combinacao de tomadas 924749 IP44

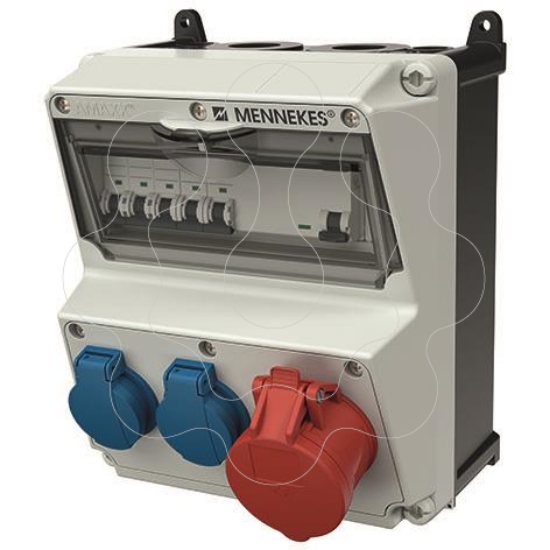

AMAXX recept. Combination, IP44. MENNEKES receptacle combination unit AMAXX ready wired for installation enclosure protection Type IP 44 enclosure: fusing fitted on pull out DIN rails below transparent window window open downwards and can be locked with padlock receptacles with angled plugging direction 1 AMAPLAST-enclosure 260 x 225 mm (h x w) lead-sealable, for internal or external fixing black base front cover electric grey RAL 7035 hinged cover with dual thread cover screws fitted with/fused with: Pos. 01 1 CEE receptacle 16A 5p 400V 1 MCB 16A 3p+N C Pos. 02 2 SCHUKO receptacles 16A 2p+E 230V blue 2 MCB 16A 1p+N C Pos. 01-02 1 RCD 40A 4p IFN= 0,03 A cable entry/supply: 2 M 32 at the top and at the bottom (closed) 2 M 20 at the top and at the bottom (closed) for 1 cable up to 5 x 10 mm²
